VCalm®TWZX

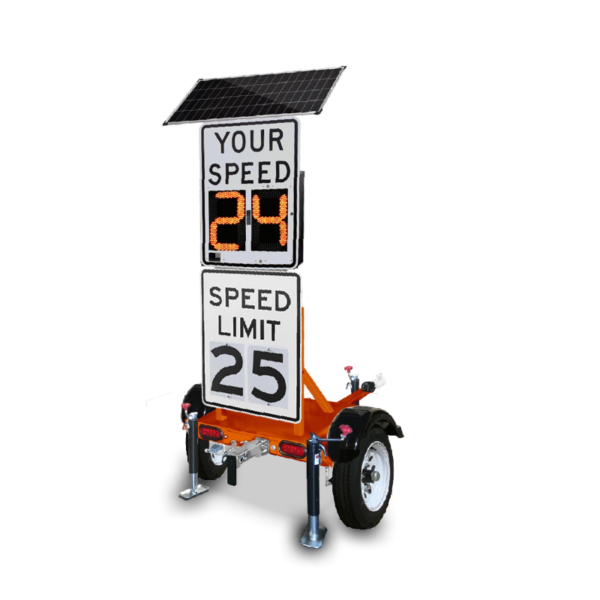

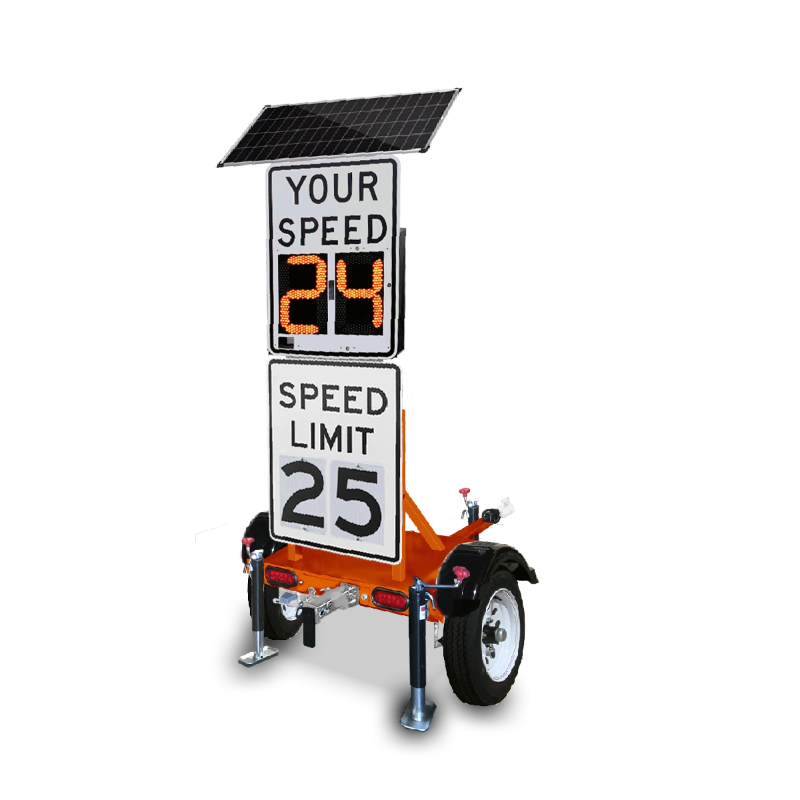

Fortel Traffic’s VCalm®TWZX is a compact, foldable trailer designed for work zones. It can be folded down to make it easy for a single operator to transport, set up, and adjust.

VCalm®TWZX is a summation of the most important features and technology that meet the evolving needs of the traffic and construction safety industry.

  • Heavy-Duty 11-Gauge (0.090″) Continuous Formed Aluminum Enclosure
  • Sign Folds Down for Easy Transport and Storage
  • Gas-Lift Strut Assisted Folding Mechanism
  • Quick and Easy Deployment
  • Light Weight and Small Footprint
  • Three Swing-Down Adjustable Leveling Jacks
Model
VCalm®TWZX - L18

Size: 54" (W)

84" (L) With Tongue

48" (L) Without Tongue

64" (H) Lowered

100" (H) Raised

Speed Feedback Sign:

  • Letters: 6″ MUTCD
  • Numerals: 18″(H)
  • Sign Dimensions: 30″(W) x 40″(H)
  • Sign Enclosure: 30″(W) x 24″(H) x 4.6″(D)

Speed Limit Sign:

  • Adjustable Digits
  • 30"(W) x 36" (H)
  • Numbers: 16" (H)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy
Trailer Color
Power
Battery Type
Battery Type
Modem
Wireless Data Service
ALPR
ALPR
Additional Options
Placeholder
Add - Strobe Light
  • Strobe Light
  • Strobe Color

    Category:

    Description

    Fortel Traffic’s VCalm®TWZX is a compact, foldable trailer designed for work zones. It can be folded down to make it easy for a single operator to transport, set up, and adjust.

    VCalm®TWZX is a summation of the most important features and technology that meet the evolving needs of the traffic and construction safety industry.

    Brightest Display

    VCalm® utilizes high-volume, high-intensity, tightly-clustered LEDs to maintain the highest visibility possible.

    Unrivaled Versatility
    • Custom Messaging based on unique road conditions, activities, or events
    • Multiple independently-scheduled vehicle speed thresholds can trigger any variation of messages and/or auxiliary devices: strobes, flashers, sirens, beacons, wireless alerts, etc.
    • Instant Critical Messaging allows you to quickly display a high priority message from a remote location (requires IP modem).
    Lowest Power Consumption

    VCalm® uses proprietary PWMS™ LED technology that consumes 50% less power than common LED technology. Our programming delivers exceptional autonomy for solar/battery installations in a much smaller package size.

    Simplest Programming
    • SD Card provides practically limitless data storage space (40 years of data per gigabyte) and makes programming and data retrieval simple and affordable. (SDHC compatible)
    • Modems, coupled with our automated online software, provide remote access to sign programming so changes can be made instantly.
    • VSpeed™Online is the ultimate management software that gives the ability to program signs, simulate functionality, analyze data, and deploy configuration changes through remote access or SD cards.
    Strongest Construction

    VCalm® maintains superior construction and durability with high quality components and no moving parts.

    Easy and Accurate Reporting
    • Traffic Data Acquisition System (TDAS) collects the fastest and slowest speed for each vehicle. The software uses this data to calculate the percentage of slowing vehicles and prove the device’s effectiveness.
    • Accurate raw data collected by VCalm® can be used to construct limitless report formats and parameters for thorough data analysis.

    Specifications

    Frame Construction: 2″ Steel Square Tube

    Wheels (x2): 13″ Four-Stud Rim (White)

    Jack Stands (x3): 2000lb 12″ Retractable

    Hitch Receiver: 2″ with Removable Tongue

    Hitch Type: 2″ Class II Ball Coupler

    Taillights: 6-Way Standard Male Plug

    Power: 12V DC

    Base Weight*: 500lb

    *Size and Weight May Vary Depending on Features
