VCalm®TS

Small Trailer

by Fortel Traffic, Inc.

Fortel Traffic’s VCalm®TS is a powerful traffic calming message board with the added versatility of a trailer that provides a simple way for a single operator to relocate the sign. VCalm®TS is a summation of the most important features and technology that meet the evolving needs of the traffic and construction safety industry.

VCalm®TS-SM12 Small Trailer with VCalm®SM Full-Matrix Speed Feedback Radar Sign (Orange)
VCalm®TS-SM12 Small Trailer with VCalm®SM Full-Matrix Speed Feedback Radar Sign
VCalm®TS-SM12 Small Trailer with VCalm®SM Full-Matrix Speed Feedback Radar Sign (Green)
VCalm®TS-SM12 Small Trailer with VCalm®SM Full-Matrix Speed Feedback Radar Sign (Black)
OrangeWhiteBlack

Features

Brightest Display

VCalm® utilizes high-volume high-intensity tightly clustered LEDs to maintain the highest visibility possible. This proven method of authoritative message presentation demands driver’s attention, making it the most effective traffic calming sign on the market.

Unrivaled Versatility

  • Custom Messaging based on unique road conditions, activities, or events
  • Multiple independently-scheduled vehicle speed thresholds can trigger any variation of messages and/or auxiliary devices: strobes, flashers, sirens, beacons, wireless alerts, etc.
  • Instant Critical Messaging allows you to quickly display a high priority message from a remote location (requires IP modem).

Lowest Power Consumption

VCalm® uses proprietary PWMS™ LED technology that consumes 50% less power than common LED devices. This provides exceptional autonomy for solar/battery installations.

Simplest Programming

  • SD Card provides practically limitless data storage space (40 years of data per gigabyte) and makes programming and data retrieval simple and affordable. (SDHC compatible)
  • Modems, coupled with our automated online software, provide remote access to sign programming so changes can be made instantly.
  • VSpeed™Online is the ultimate management software that gives the ability to program signs, simulate functionality, analyze data, and deploy configuration changes through remote access or SD cards.

Strongest Construction

VCalm® maintains superior construction and durability with high quality components and no moving parts. The design meets the NEMA-3R specifications, and many of the VCalm® signs have withstood severe conditions, including hurricanes, fires, and extreme temperatures. VCalm® has consistently proven to be the longest lasting speed sign in the industry.

Easy and Accurate Reporting

  • Traffic Data Acquisition System (TDAS) collects the fastest and slowest speed for each vehicle. The software uses this data to calculate the percentage of slowing vehicles and prove the device’s effectiveness.
  • Accurate raw data collected by VCalm® can be used to construct limitless report formats and parameters for thorough data analysis.
made in USA

Specifications

Select Model:

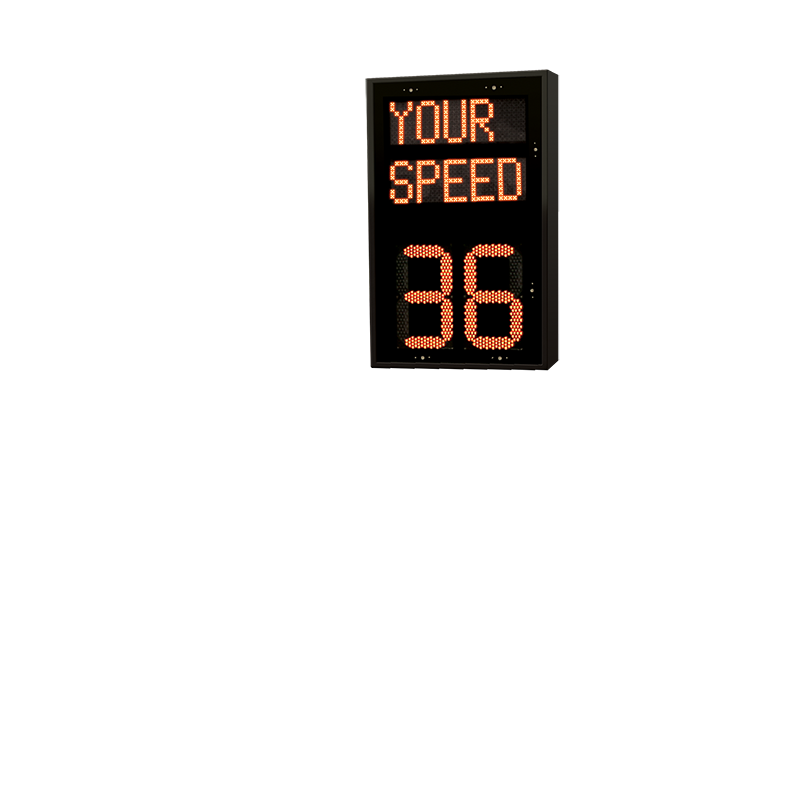

Small Trailer with VCalm®VMS Sign

VCalm®TS-VMS Small Trailer with VCalm®VMS Variable Message Sign (Orange)

Characters: 4″(W) x 6″(H)

Numerals: 9″(W) x 16″(H)

Sign Dimensions: 28.5″(W) x 45″(H) x 4.5″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Power Consumption:

  • 500mA – 2000mA @12VDC
  • 400mA – 600mA @120VAC

Part Number: 3000-0009

Small Trailer with VCalm®VMS Sign and Rekor Integration

VCalm®TS-VMS Small Trailer with VCalm®VMS Variable Message Sign (Orange)VCalm® Rekor Edge Pro

Characters: 4″(W) x 6″(H)

Numerals: 9″(W) x 16″(H)

Sign Dimensions: 28.5″(W) x 45″(H) x 4.5″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Power Consumption:

  • 500mA – 2000mA @12VDC
  • 400mA – 600mA @120VAC
Small Trailer with VCalm®KVMS Sign

VCalm®TS-KVMS Small Trailer with VCalm®KVMS Traffic Calming Sign

Characters: 4″(W) x 6″(H)

Numerals: 9″(W) x 16″(H)

Sign Dimensions: 28.5″(W) x 45″(H) x 4.5″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Power Consumption:

  • 500mA – 2000mA @12VDC
  • 400mA – 600mA @120VAC
Small Trailer with VCalm®KVMS Sign and Rekor integration

VCalm®TS-KVMS Small Trailer with VCalm®KVMS Traffic Calming SignVCalm® Rekor Edge Pro

Characters: 4″(W) x 6″(H)

Numerals: 9″(W) x 16″(H)

Sign Dimensions: 28.5″(W) x 45″(H) x 4.5″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Power Consumption:

  • 500mA – 2000mA @12VDC
  • 400mA – 600mA @120VAC
Small Trailer with VCalm®YS Sign

VCalm®TS-YS Small Trailer with VCalm®YS Static VMS-Upgradeable Speed Feedback Radar Sign (Orange)

Characters: 4″(W) x 6″(H)

Numerals: 9″(W) x 16″(H)

Sign Dimensions: 28.5″(W) x 45″(H) x 4.5″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Power Consumption:

  • 500mA – 2000mA @12VDC
  • 400mA – 600mA @120VAC

Part Number: 1000-3060

Small Trailer with VCalm®YS Sign and Rekor integration

VCalm®TS-YS Small Trailer with VCalm®YS Static VMS-Upgradeable Speed Feedback Radar Sign (Orange)VCalm® Rekor Edge Pro

Characters: 4″(W) x 6″(H)

Numerals: 9″(W) x 16″(H)

Sign Dimensions: 28.5″(W) x 45″(H) x 4.5″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Power Consumption:

  • 500mA – 2000mA @12VDC
  • 400mA – 600mA @120VAC
Small Trailer with VCalm®KYS Sign

VCalm®TS-KYS Small Trailer with VCalm®KYS VMS-Upgradeable Traffic Calming Sign

Characters: 4″(W) x 6″(H)

Numerals: 9″(W) x 16″(H)

Sign Dimensions: 28.5″(W) x 45″(H) x 4.5″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Power Consumption:

  • 500mA – 2000mA @12VDC
  • 400mA – 600mA @120VAC
Small Trailer with VCalm®KYS Sign and Rekor integration

VCalm®TS-KYS Small Trailer with VCalm®KYS VMS-Upgradeable Traffic Calming SignVCalm® Rekor Edge Pro

Characters: 4″(W) x 6″(H)

Numerals: 9″(W) x 16″(H)

Sign Dimensions: 28.5″(W) x 45″(H) x 4.5″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Power Consumption:

  • 500mA – 2000mA @12VDC
  • 400mA – 600mA @120VAC
Small Trailer with VCalm®SM12 Sign

VCalm®TS-SM12 Small Trailer with VCalm®SM12 Full-Matrix Speed Feedback Radar Sign (Orange)

Letters: 4″ MUTCD

Numerals: 12″(H)

Resolution: 24px x 18px

Sign Dimensions: 24″(W) x 30″(H)

Sign Enclosure: 24″(W) x 30″(H) x 5.125″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Part Number: 1000-6300

Small Trailer with VCalm®SM15 Sign

VCalm®TS-SM15 Small Trailer with VCalm®SM15 Full-Matrix Speed Feedback Radar Sign (Orange)

Letters: 6″ MUTCD

Numerals: 15″(H)

Resolution: 24px x 18px

Sign Dimensions: 30″(W) x 42″(H)

Sign Enclosure: 30″(W) x 30″(H) x 5.125″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Part Number: 1000-6300

Small Trailer with VCalm®SM16 Sign

VCalm®TS-SM15 Small Trailer with VCalm®SM15 Full-Matrix Speed Feedback Radar Sign (Orange)

Letters: 6″ MUTCD

Numerals: 16″(H)

Resolution: 24px x 18px

Sign Dimensions: 30″(W) x 42″(H)

Sign Enclosure: 30″(W) x 30″(H) x 5.125″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Part Number: 1000-6300

Small Trailer with VCalm®SM18 Sign

VCalm®TS-SM18 Small Trailer with VCalm®SM18 Full-Matrix Speed Feedback Radar Sign (Orange)

Letters: 6″ MUTCD

Numerals: 18″(H)

Resolution: 24px x 18px

Sign Dimensions: 36″(W) x 48″(H)

Sign Enclosure: 30″(W) x 30″(H) x 5.125″(D)

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

Part Number: 1000-6300

Small Trailer with VCalm®LM18 Sign and Rekor Integration

VCalm®TSR-L18 Small Trailer with VCalm®L18 Lightweight Speed Feedback Radar Sign (Orange)VCalm® Rekor Edge Pro

Sign Dimensions: 30″(W) x 40″(H) x 5″(D)

LEDs: Surface-Mounted Ultra High-Intensity Amber

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy
Small Trailer with VCalm®L18 Sign and Rekor Integration

VCalm®TSR-L18 Small Trailer with VCalm®L18 Lightweight Speed Feedback Radar Sign (Orange)VCalm® Rekor Edge Pro

Sign Dimensions: 48″(W) x 33″(H) x 5″(D)

LEDs: Surface-Mounted Ultra High-Intensity Amber

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy
Small Trailer with VCalm®ITS 2’x4′ Sign

VCalm®TS-4x2 Small Trailer with VCalm®ITS 2x4 Sign (Orange)

Sign Dimensions: 33″(W) x 48″(H) x 4.75″(D)

LEDs: 6,144 Surface-Mounted Ultra High-Intensity Amber

Resolution: 32 x 64

Minimum Message Size: 9 Lines, 6 Characters Per Line (4″ Tall)

Maximum Message Size: 2 Line, 2 Characters Per Line (15″ Tall)

Power Consumption: <2900mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback
Small Trailer with VCalm®ITS 2’x4′ Sign

VCalm®TS-4x2 Small Trailer with VCalm®ITS 2x4 Sign (Orange)VCalm® Rekor Edge Pro

Sign Dimensions: 33″(W) x 48″(H) x 4.75″(D)

LEDs: 6,144 Surface-Mounted Ultra High-Intensity Amber

Resolution: 32 x 64

Minimum Message Size: 9 Lines, 6 Characters Per Line (4″ Tall)

Maximum Message Size: 2 Line, 2 Characters Per Line (15″ Tall)

Power Consumption: <2900mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback

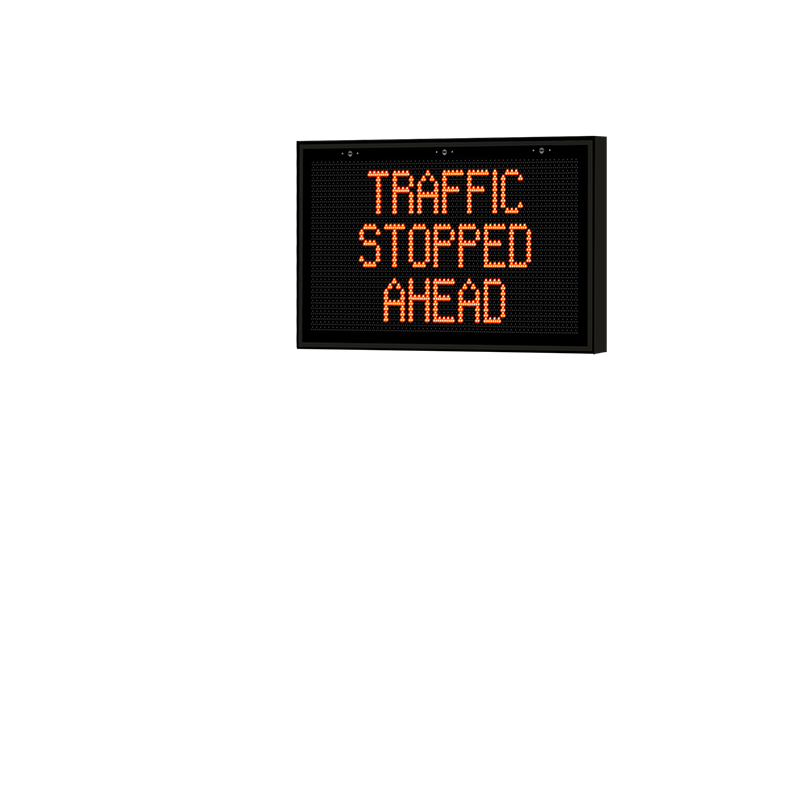

Small Trailer with VCalm®ITS 4’x2′ Sign

VCalm®TS-4x2 Small Trailer with VCalm®ITS 4x2 Sign (Orange)

Sign Dimensions: 48″(W) x 33″(H) x 5″(D)

LEDs: 6,144 Surface-Mounted Ultra High-Intensity Amber

Resolution: 64 x 32

Minimum Message Size: 4 Lines, 12 Characters Per Line (4″ Tall)

Maximum Message Size: 1 Line, 4 Characters Per Line (15″ Tall)

Power Consumption: <2900mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback

Part Number: 3000-0007

Small Trailer with VCalm®ITS 4’x2′ Sign and Rekor integration

VCalm®TS-4x2 Small Trailer with VCalm®ITS 4x2 Sign (Orange)VCalm® Rekor Edge Pro

Sign Dimensions: 48″(W) x 33″(H) x 5″(D)

LEDs: 6,144 Surface-Mounted Ultra High-Intensity Amber

Resolution: 64 x 32

Minimum Message Size: 4 Lines, 12 Characters Per Line (4″ Tall)

Maximum Message Size: 1 Line, 4 Characters Per Line (15″ Tall)

Power Consumption: <2900mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback

Small Trailer with Custom Sign

Contact Us

N

Formed 11-gauge Cold-Rolled Steel Frame

N

Sign Folds Down for Easy Transport and Storage

N

Gas-Lift Strut Assisted Folding Mechanism

N

Quick and Easy Deployment

N

Light Weight and Small Footprint

N

Four Swing-Down Adjustable Leveling Jacks

Raised Dimensions*: 58"(W) x 86"(H) x 87"(D) or 103"(D) With Tongue Attached

Lowered Dimensions*: 58"(W) x 41"(H) x 87"(D) or 103"(D) With Tongue Attached

Lift Struts (x2): 120lb Charged Gas

Frame Construction: 2" Steel Square Tube

Wheels (x2): 13" Four-Stud Rim (White)

Jack Stands (x4): 2000lb 12" Retractable

Hitch Receiver: 2" with Removable Tongue

Hitch Type: 2" Class II Ball Coupler

Tail Lights: 6-Way Standard Male Plug

Power: 12V DC

Base Weight*: 500lb

*Size and Weight May Vary Depending on Features

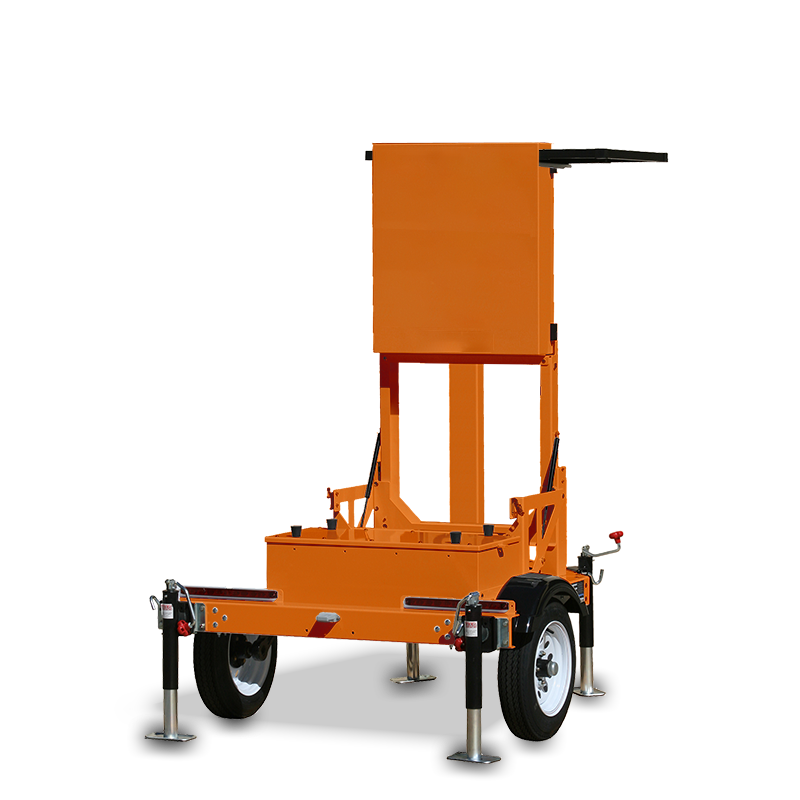

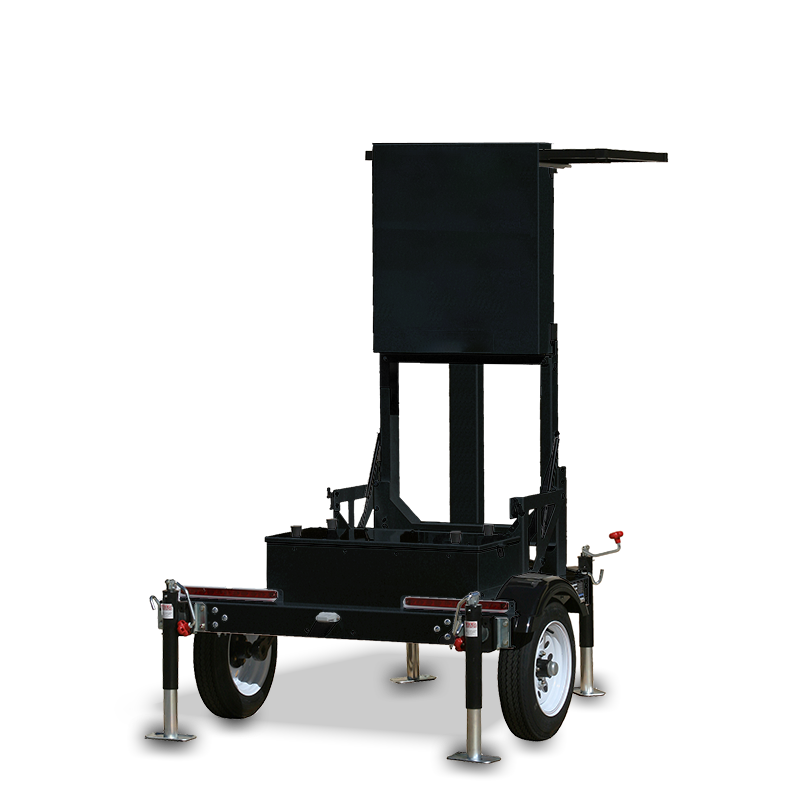

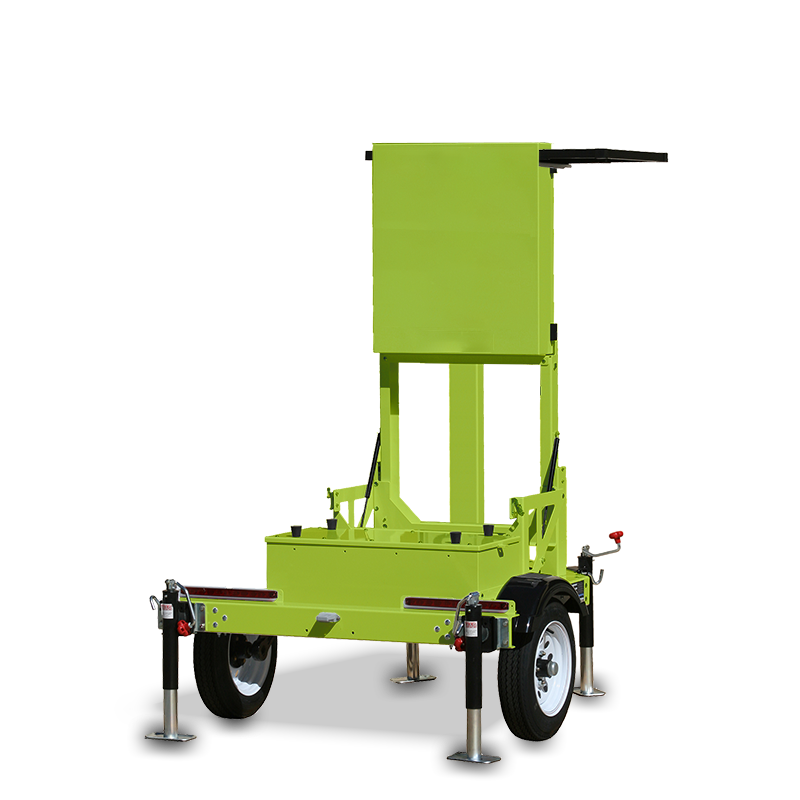

Trailer Color:
