VCalm®TL

Large Trailer

by Fortel Traffic, Inc.

Fortel Traffic’s VCalm®TL is a powerful traffic calming message board with the added versatility of a trailer that provides a simple way for a single operator to relocate the sign. VCalm®TL is a summation of the most important features and technology that meet the evolving needs of the traffic and construction safety industry.

Features

Brightest Display

VCalm® utilizes high-volume high-intensity tightly clustered LEDs to maintain the highest visibility possible. This proven method of authoritative message presentation demands driver’s attention, making it the most effective traffic calming sign on the market.

Unrivaled Versatility

  • Custom Messaging based on unique road conditions, activities, or events
  • Multiple independently-scheduled vehicle speed thresholds can trigger any variation of messages and/or auxiliary devices: strobes, flashers, sirens, beacons, wireless alerts, etc.
  • Instant Critical Messaging allows you to quickly display a high priority message from a remote location (requires IP modem).

Lowest Power Consumption

VCalm® uses proprietary PWMS™ LED technology that consumes 50% less power than common LED devices. This provides exceptional autonomy for solar/battery installations.

Simplest Programming

  • SD Card provides practically limitless data storage space (40 years of data per gigabyte) and makes programming and data retrieval simple and affordable. (SDHC compatible)
  • Modems, coupled with our automated online software, provide remote access to sign programming so changes can be made instantly.
  • VSpeed™Online is the ultimate management software that gives the ability to program signs, simulate functionality, analyze data, and deploy configuration changes through remote access or SD cards.

Strongest Construction

VCalm® maintains superior construction and durability with high quality components and no moving parts. The design meets the NEMA-3R specifications, and many of the VCalm® signs have withstood severe conditions, including hurricanes, fires, and extreme temperatures. VCalm® has consistently proven to be the longest lasting speed sign in the industry.

Easy and Accurate Reporting

  • Traffic Data Acquisition System (TDAS) collects the fastest and slowest speed for each vehicle. The software uses this data to calculate the percentage of slowing vehicles and prove the device’s effectiveness.
  • Accurate raw data collected by VCalm® can be used to construct limitless report formats and parameters for thorough data analysis.
made in USA

Specifications

Select Model:

Large Trailer with VCalm®ITS 6’x4′ Sign

VCalm®TL Large Trailer (Orange)

Sign Dimensions: 72″(W) x 48″(H) x 5″(D)

LEDs: 18,432 Surface-Mounted Ultra High-Intensity Amber

Resolution: 96 x 64

Minimum Message Size: 9 Lines, 19 Characters Per Line (4″ Tall)

Maximum Message Size: 2 Lines, 7 Characters Per Line (15″ Tall)

Power Consumption: <6900mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback
Large Trailer with VCalm®ITS 6’x4′ Sign and Rekor integration

VCalm®TL Large Trailer (Orange)VCalm® Rekor Edge Pro

Sign Dimensions: 72″(W) x 48″(H) x 5″(D)

LEDs: 18,432 Surface-Mounted Ultra High-Intensity Amber

Resolution: 96 x 64

Minimum Message Size: 9 Lines, 19 Characters Per Line (4″ Tall)

Maximum Message Size: 2 Lines, 7 Characters Per Line (15″ Tall)

Power Consumption: <6900mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback

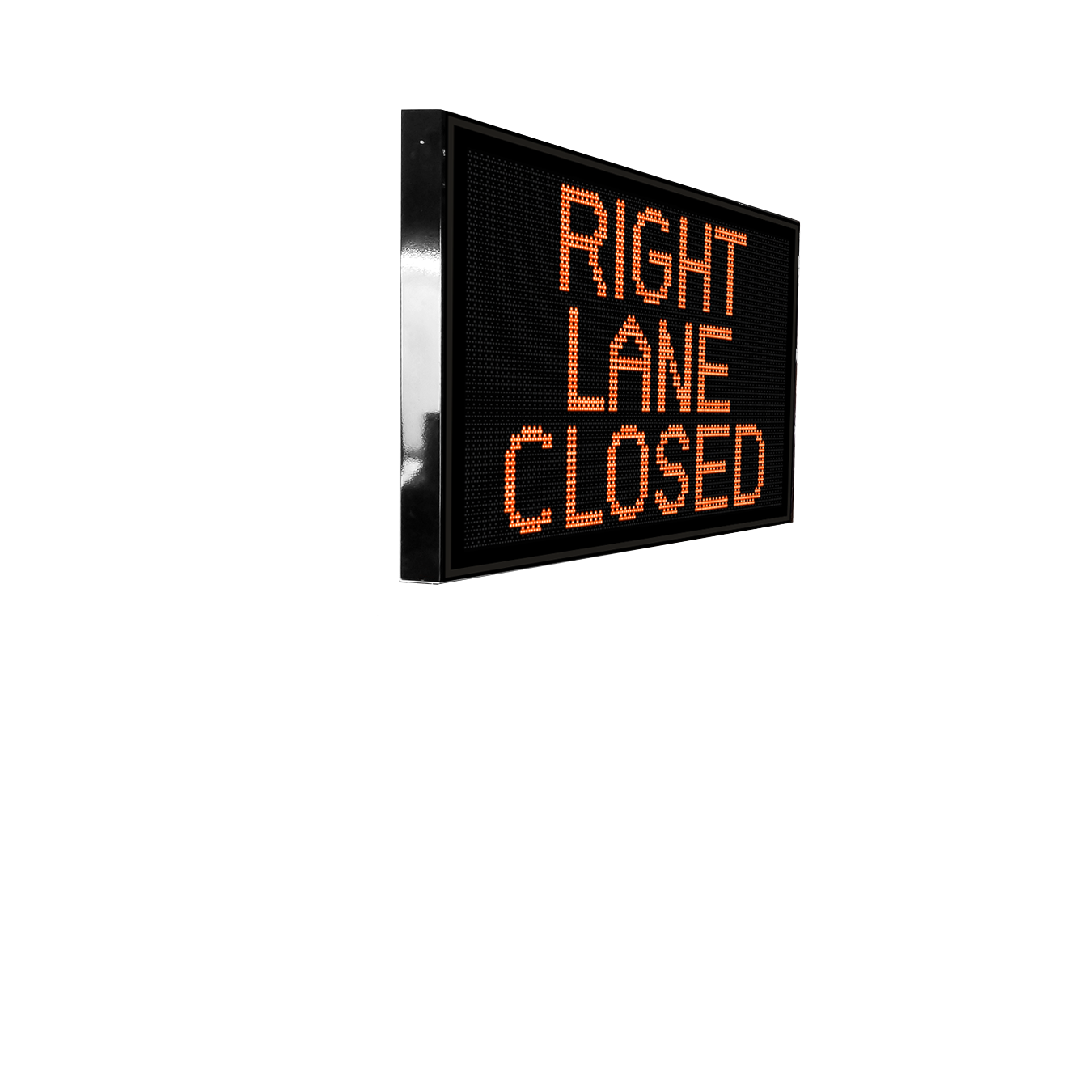

Large Trailer with VCalm®ITS 7’x4′ Sign

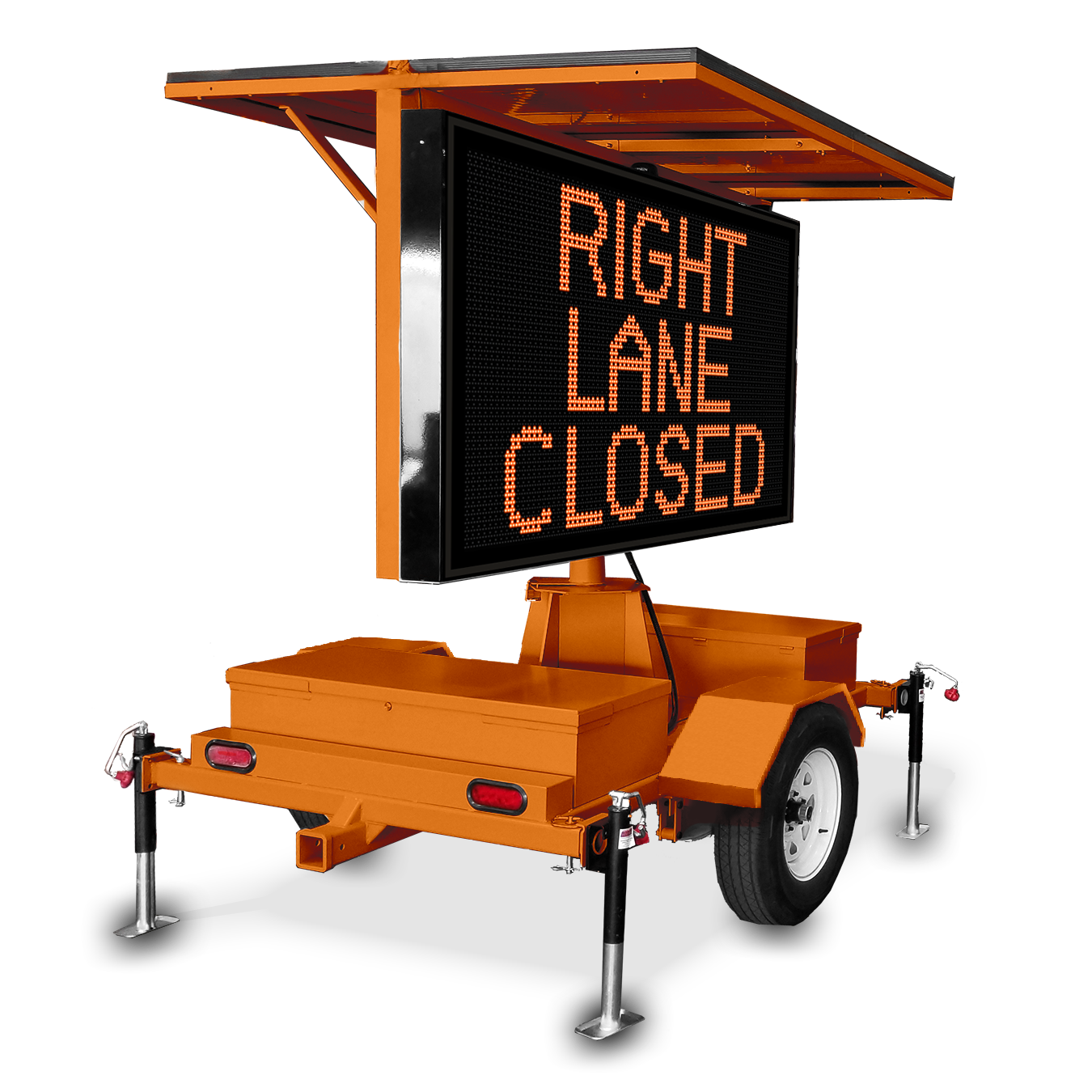

VCalm®TL-7x4 Large Trailer (Orange)

Sign Dimensions: 84″(W) x 48″(H) x 5″(D)

LEDs: 18,432 Surface-Mounted Ultra High-Intensity Amber

Resolution: 112 x 64

Minimum Message Size: 9 Lines, 19 Characters Per Line (4″ Tall)

Maximum Message Size: 3 Lines, 10 Characters Per Line (12″ Tall)

Power Consumption: <8400mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback
Large Trailer with VCalm®ITS 7’x4′ Sign and Rekor Integration

VCalm®TL-7x4 Large Trailer (Orange)      VCalm® Rekor Edge Pro

Sign Dimensions: 84″(W) x 48″(H) x 5″(D)

LEDs: 18,432 Surface-Mounted Ultra High-Intensity Amber

Resolution: 112 x 64

Minimum Message Size: 9 Lines, 19 Characters Per Line (4″ Tall)

Maximum Message Size: 3 Lines, 10 Characters Per Line (12″ Tall)

Power Consumption: <8400mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback

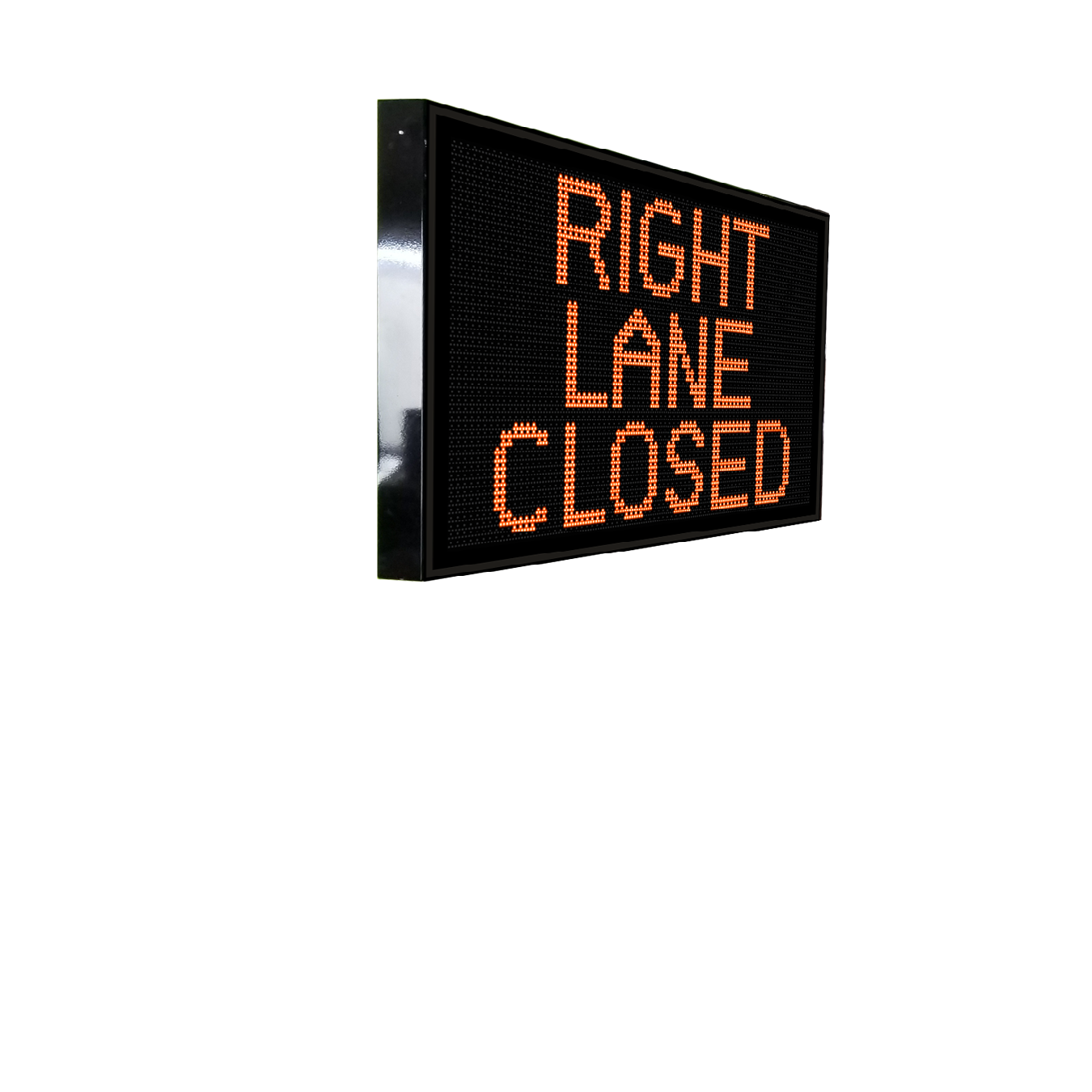

Large Trailer with VCalm®ITS 8’x4′ Sign

VCalm®TL-8x4 Large Trailer (Orange)

Sign Dimensions: 96″(W) x 48″(H) x 5″(D)

LEDs: 18,432 Surface-Mounted Ultra High-Intensity Amber

Resolution: 128 x 64

Minimum Message Size: 9 Lines, 25 Characters Per Line (4″ Tall)

Maximum Message Size: 2 Lines, 10 Characters Per Line (15″ Tall)

Power Consumption: <8400mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback
Large Trailer with VCalm®ITS 8’x4′ Sign with Rekor integration

VCalm®TL-8x4 Large Trailer (Orange)      VCalm® Rekor Edge Pro

Sign Dimensions: 96″(W) x 48″(H) x 5″(D)

LEDs: 18,432 Surface-Mounted Ultra High-Intensity Amber

Resolution: 128 x 64

Minimum Message Size: 9 Lines, 25 Characters Per Line (4″ Tall)

Maximum Message Size: 2 Lines, 10 Characters Per Line (15″ Tall)

Power Consumption: <8400mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback

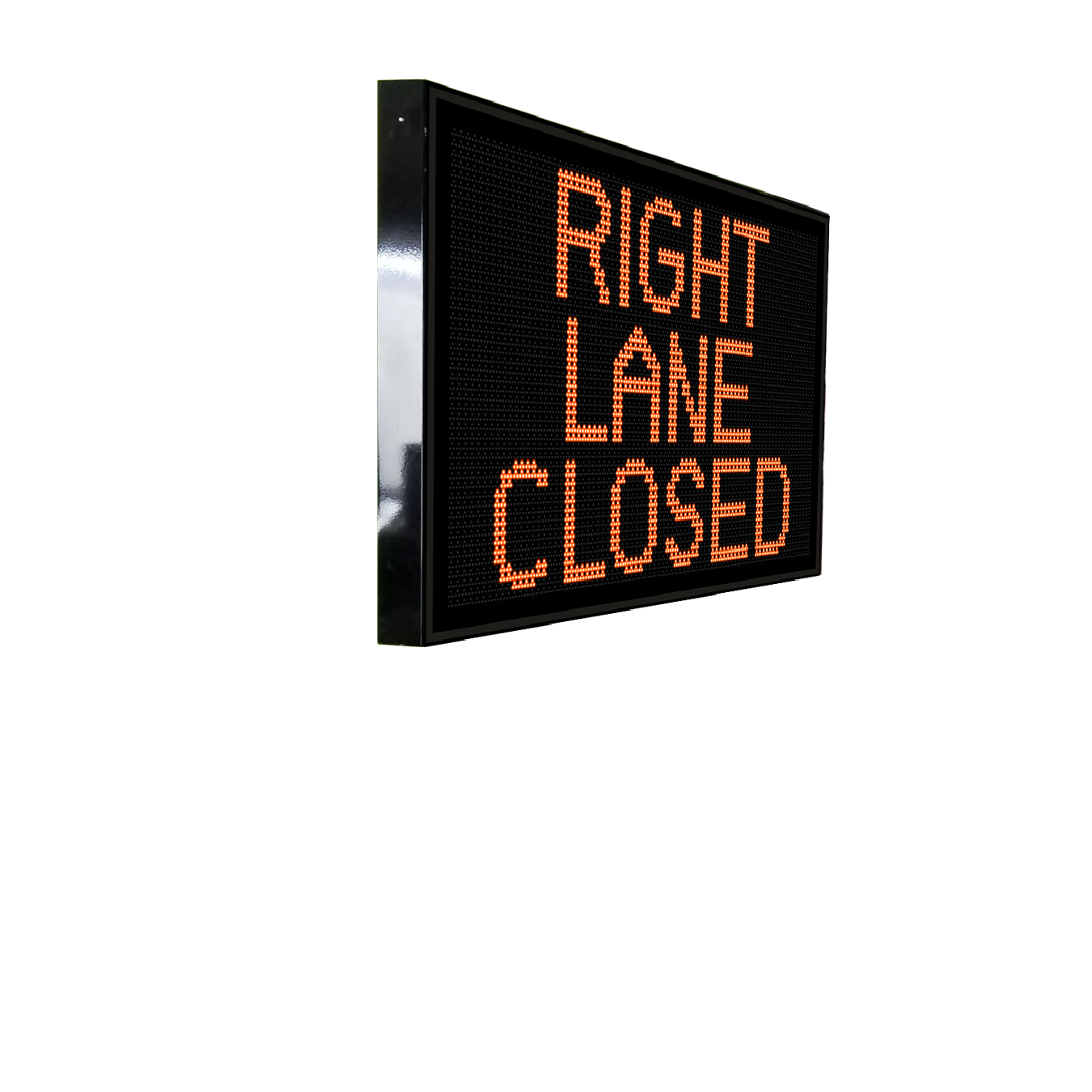

Large Trailer with VCalm®ITS 8’x5′ Sign

VCalm®TL-8x5 Large Trailer (Orange)

Sign Dimensions: 96″(W) x 60″(H) x 5″(D)

LEDs: 18,432 Surface-Mounted Ultra High-Intensity Amber

Resolution: 128 x 80

Minimum Message Size: 9 Lines, 19 Characters Per Line (4″ Tall)

Maximum Message Size: 2 Lines, 10 Characters Per Line (15″ Tall)

Power Consumption: <8400mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback
Large Trailer with VCalm®ITS 8’x5′ Sign with Rekor integration

VCalm®TL-8x5 Large Trailer (Orange)      VCalm® Rekor Edge Pro

Sign Dimensions: 96″(W) x 60″(H) x 5″(D)

LEDs: 18,432 Surface-Mounted Ultra High-Intensity Amber

Resolution: 128 x 80

Minimum Message Size: 9 Lines, 19 Characters Per Line (4″ Tall)

Maximum Message Size: 2 Lines, 10 Characters Per Line (15″ Tall)

Power Consumption: <8400mA

Radar:

  • K Band (24.159 GHz)
  • FCC Compliant (no license required)
  • Low Power (<2 Watt)
  • ±1MPH Accuracy

ITS Options:

  • Travel Time Information
  • Traffic Flow Information
  • Dispatched Messages (Caltrans)
  • Speed Feedback

Large Trailer with Custom Sign

Contact Us

N

Formed 11-gauge Cold-Rolled Steel Welded Frame

N

Sign Rotates on Center Post for Easy Transport and Storage

N

High-Capacity Electric Lift with Integrated Motor

N

Formed External Parts for Easy Replacement

N

Four Extendable Legs with Swing-Down Adjustable Leveling Jacks

Raised Dimensions*: 11'(W) x 10'(H) x 7'7"(D)

Lowered Dimensions*: 6'(W) x 8'9"(H) x 7'7"(D)

Electric Lift:

  • Uniform Speed (Raise and Lower)
  • 36" of Travel
  • Bottom of Sign Can Be Raised To 10 Feet
  • Maintenance-Free; No Hydraulic Pumps or Fluid Required

Frame Construction: 3" Steel Square Tube

Wheels (x4): 17" Five-Stud Rim (White)

Jack Stands (x4): 3000lb 20" Retractable

Jack Stand Legs (x4): 20" Diagonally Extending Adjustable Outriggers for Maximum Stability

Hitch Receivers (Front and Back): 3" with Removable Tongue

Hitch Type: 2" Class III Ball Coupler

Tail Lights: 6-Way Standard Male Plug

Power: 12V or 24V DC

Base Weight*: 1200lb

*Size and Weight May Vary Depending on Features
