VCalm®PRO
VCalm®PRO is an automatic license plate recognition (ALPR) and vehicle recognition system that seamlessly captures and processes vehicle data. This system easily mounts to existing or new poles and connects to existing power or optional solar panels.
Features
Ready to Deploy
VCalm®PRO configurations are ready to mount on an existing pole or a new pole with options to use existing photocell tap or power with a solar package. They also mount on flat surfaces and trailers. On-device processing provides real-time data updates and alerts.
Incredible Read Accuracy
- Built with the best available hardware and packaged with incredibly accurate Scout software, these systems capture license plates that other companies miss.
- Each unit has advanced detection for vehicle make, color, type, and direction and time of travel.
- 24/7 sensors capture vehicle data day and night with motion detection video capture capability.
Intuitive Software
- Scout dashboard makes managing real-time vehicle data easy with sort and search functions and the ability to configure allowed lists and restricted lists.
- Software provides detailed vehicle counts, such as percentage of electric vehicles out of total vehicles.
Specifications
Select Model:
Components:
- Pelican Box
- Power Supply
- Wireless Modem
- Terminal Block and Wire Harness
- 120V / 240V Photocell Tap and Fuse

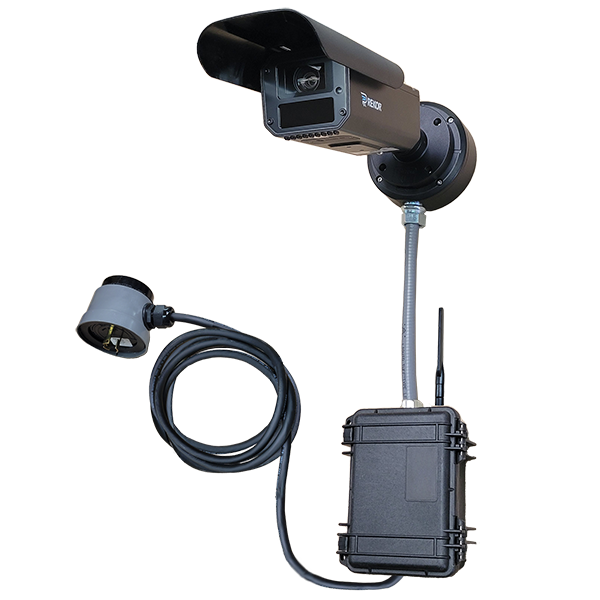

Power Source: 120V / 240V Photocell Tap
Part Number: 8620-4001






Components:
- Pelican Box
- Power Supply
- Wireless Modem
- Terminal Block and Wire Harness
Power Source: Standard Solar Package
Part Number: 8620-4002






Standalone Unit (Power Source and Mounting Components Not Included)
Optimized IR Illumination
Rekor Scout™ Software Included
Ethernet Port
Full Repair / Replace Warranty
Capture Distance: 75 Feet
Lane Coverage: 1 to 2 Lanes
Capture Speed: 70 MPH
Camera Resolution: 1080p
Video Streaming: H264
Security: SSL & HTTPs
Enclosure: Die-Cast Aluminum, IP67
Operating Temperature: -4°F to 122°F
Storage Temperature: -22°F to 140°F
Power Consumption:
- Average: 7W
- Max: 26W
Wireless IP Modem:
Wireless Data Service:
Data Service Length:
Mounting:
Quantity:
Discounts available by order quantity:
Medium quantity (2-9)
Bulk quantity (10+)



Selected Model:
